Enhanced SOOW and SJOOW

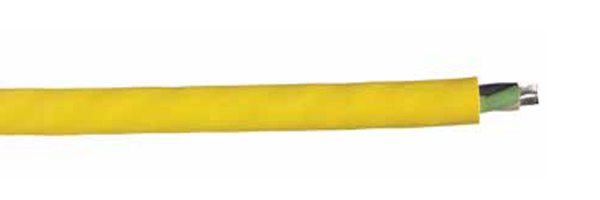

Super Vu-Tron® Supreme SJOOW/SOOW. 105ºC 300 and 600 Volt UL /CSA

SJOOW/SOOW Supreme cable rated 600V, ideal for heavy-duty applications. Highly flexible and water-resistant.
Enhanced SOOW and SJOOW

Cable Construction:

Download PDF

Conductors

  • 18 through 10 AWG. fully annealed stranded tinned copper per ASTM B-174

Jacket

  • Super Vu-Tron® Supreme, Yellow
Temperature Range:
  • –50ºC to +105ºC UL/CSA
Voltage rating:
  • 300 volts Type SJOOW
  • 600 volts Type SOOW

Insulation

  • Premium-grade, colour-coded, oil-resistant
    105ºC EPDM
  • Colour Code: See chart on PDF

jacket Marking

  • CAROL SUPER VU-TRON SUPREME
    (SIZE) (mm2) 105C (UL) WATER RESISTANT
    SJOOW (OR SOOW) CSA (–50C) FT-1
    P-123-103 MSHA 300 (OR 600) VOLT
    RoHS MADE IN USA

Features

  • Yellow stripe on green conductor
  • Sequential footage marks
  • Excellent flexibility in cold temperatures
  • Last longer in flex applications
  • Integral Flexfill®
  • Ozone- and weather-resistant
  • UL Listed and CSA Certified for indoor and outdoor use
  • Water-resistant – can be immersed in water
  • Safety-coloured
  • High heat and flame resistance
  • Resistant to oils, acids and chemicals
  • Excellent abrasion and cut resistance
  • Class M stranding
  • Tinned copper conductors – corrosion/oxidation-resistant
  • Sunlight- (UV) resistant

Industry Approvals

CE Mark - Sizes 10 AWG and 12 AWG SOOW, CSA Flexible Cord - C22.2-49, JC580, MSHA Approved, OSHA Acceptable, RoHS Compliant, UL Flexible Cord - UL Subject 62

Applications

  • Machine tools
  • Power tools
  • Dockside power applications
  • Motor leads
  • Portable machinery
  • Cranes
  • Submersible pumps
  • Where water immersion is required
  • Severe OEM/MRO applications

Packaging

  • 250′ (76 m), 500′ (152 m), 1000′ (305 m)
  • Other put-ups available on special order
