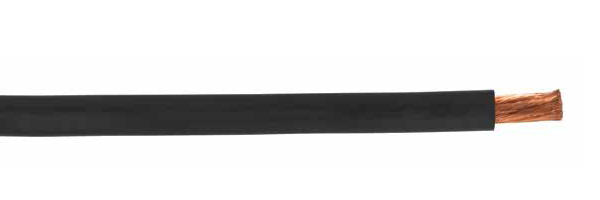

Stage Lighting Cable Type SC
Super Vu-Tron® Entertainment Industry and Stage Li. 105ºC 600 Volt UL Type SC and CSA Type PPC
Entertainment grade 105ºC cable, UL-certified for flexible use in lighting and staging applications.
Cable Construction:
Conductors
- 8 AWG. through 4/0 AWG. fully annealed stranded bare copper per ASTM B-172
Jacket
- Super Vu-Tron® 105ºC, Black
- Temperature Range: -50ºC to +105ºC
Insulation
N/A
jacket Marking
- CAROL (SIZE) (UL) 600 VOLT TYPE SC
(-50C to +105C) OIL RES 60C MAX.
AMPS NEC TABLE 400-5 (B) FOR 90C
OUTDOOR — CSA TYPE PPC 105C
600VOLT FT5
Features
- Water-resistant
- Sunlight-resistant
- Designed to withstand severe environmental conditions
- Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals
- Meets or exceeds flame test requirements of MSHA, CSA and UL
- Indent printed
Industry Approvals
CSA Certified, RoHS Compliant, UL Listed
Applications
- Portable power systems
- Entertainment industry activities such as theatre, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems
- Other similar applications that would require temporary power
Packaging
- Lengths cut to order
